Garrett Turbocharger GT2554R GT25R Ball Bearing T25 .64 A/R 5 Bolt 471171-5003S

Garrett Turbocharger GT2554R GT25R Ball Bearing T25 .64 A/R 5 Bolt 471171-5003S
€998.60

Note: Garrett has changed the part number on this turbo. The old part number is 471171-5003S and the new part number is 836023-5001S. Both old and new part numbers are exactly the same turbo with no differences.


Garrett's ball bearing cartridge has proven its worth in the highest level of motorsports where it has been the bearing system of choice in CART FEDEX ChampCar Series, 24 Hours of Le Mans, Pikes Peak International Hill Climb, World Rally Championship, and most recently Drag Racing. These premier racing customers demand no less than the best in durability, reliability, and power on demand. One key contributor to this performance lies in the ball bearing cartridge where it is, by design, surrounded by a thin film of oil. The oil film damps out destructive vibrations that would otherwise compromise turbo durability.


Product Information: Garrett GT2554R Turbocharger

Part Details:

  • Barcode: 836023-5001S
  • Old Part Number: 471171-5003S
  • Shipping Weight (Dimensional): 15.lbs

General Information:

  • Part Type: Turbochargers
  • Make: Universal
  • Model: Universal
  • Engine: Universal
  • Brand: Garrett
  • Name: GT2554R

Technical Specifications:

  • Compressor Wheel Material: Cast
  • Compressor Wheel Inducer: 42mm
  • Wastegated: Yes
  • Turbo Horsepower Range: 0-250hp, 250hp - 500hp
  • Center Cartridge: Ball Bearing

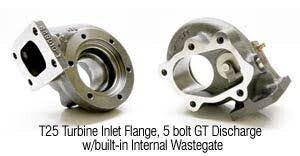

  • Exhaust Housing Inlet: T25
  • Exhaust Housing Material: Cast Iron
  • Compressor Housings: 2.36" / 1.97"
  • Exhaust Wheel Exducer: 42mm
  • Exhaust Housing Outlet: 5 Bolt W/ Hole
  • Exhaust Housing A/R: .64
  • Turbo Rotation: Standard Rotation

This turbocharger is designed to offer enhanced performance for a wide range of applications, making it a versatile choice for enthusiasts looking to boost their vehicle's horsepower. With a durable cast compressor wheel and ball bearing center cartridge, the GT2554R ensures reliable and efficient operation. The inclusion of a wastegate and a standard T25 exhaust housing inlet further contributes to its adaptability and ease of installation.
