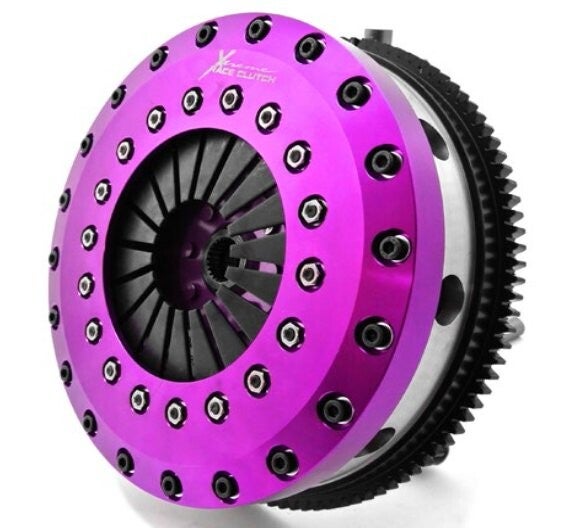

CHEVROLET CORVETTE (C7) 230mm Rigid Ceramic Triple Plate Clutch Kit Incl Flywheel & CSC
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
TECH. INFO
APPLICATIONS
- Clutch Disc Diameter (mm)
230
Clutch Disc Spline Count
26
Clutch Disc Spline Diameter (mm)
28.6
Torque (Nm)
2750
Flywheel Step
Design
Triple Plate
Stage
Multiplate - track use only
Tech Bulletins
Clamp Load
Recommended for
Motorsport
Ring Gear Tooth count
Additional infotmation
Weight [KG]:
24.8
CHEVROLET
CORVETTE (C7)
2014.04-
6.2
LT1(376CUV8) 6162 Petrol 343 kW 466 BHP (2014.04 -)
CHEVROLET
CORVETTE Cabriolet (C7)
2014.04-
6.2
LT1(376CUV8) 6162 Petrol 343 kW 466 BHP (2014.04 -)
