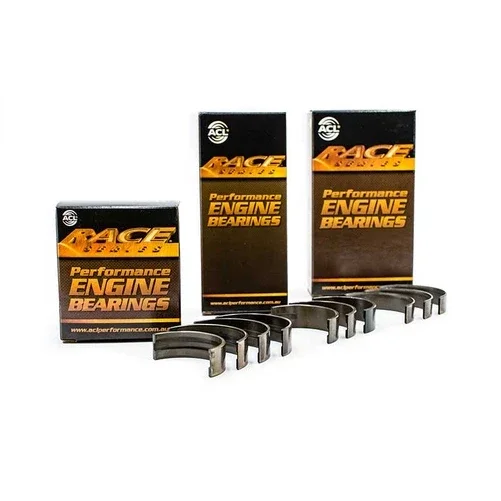

ACL Race Main Bearings .010 for Chevy GM Vortec 4.8L 5.3L 6.0L V8 LS1 LS2 LS3 L99

€247.84

for :

294ci (4.8L ) LR4 Vortec (Chevy) V8 OHV 2V 01/1999-12/2006

294ci (4.8L ) LY2 Vortec ( Chevy) V8 OHV 2V 01/2007-12/2009

325ci(5.3L) Vortec (Chevy) V8 OHV 2V 01/1999-12/2010

346ci(5.7L) LS1 (Chevy) V8 OHV 2V 01/1997-12/2005

346ci(5.7L) LS6 (Chevy) V8 OHV 2V 01/2001-12/2005

364ci(6.0L) Vortec ( Chevy) V8 OHV 2V 01/1999 - 12/2009

364ci (6.0L) LS2 01/2005 - 12/2009

376ci (6.2L) L99 01/2010-on

376ci (6.2L) LS3 01/2008-on

376ci (6.2L) Vortec (chevy) 01/2007-on

One often overlooked part when building an engine is the bearings. Getting a quality set of bearings can directly determine the longevity of your engine.

Bearing Oversize: .010"



ACL Race Series Performance Engine Bearings


The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions

Features:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Specifications


Barcode 9315726309384
UPC Code 9315726309384
Shipping Weight (Dimensional) 0.250000
Clearance Sale No
Availability Available
Part Type Main Bearings
Make Chevrolet
Engine LS1
Brand ACL Performance
Bearing Class Race
Bearing oversize 0.010" / 0.25mm
