CSF 8210 High Performance Intercooler 2016+ Ferrari 488 F8 Tributo F142M F142MFL F154C Raw Finish

€5,995.00

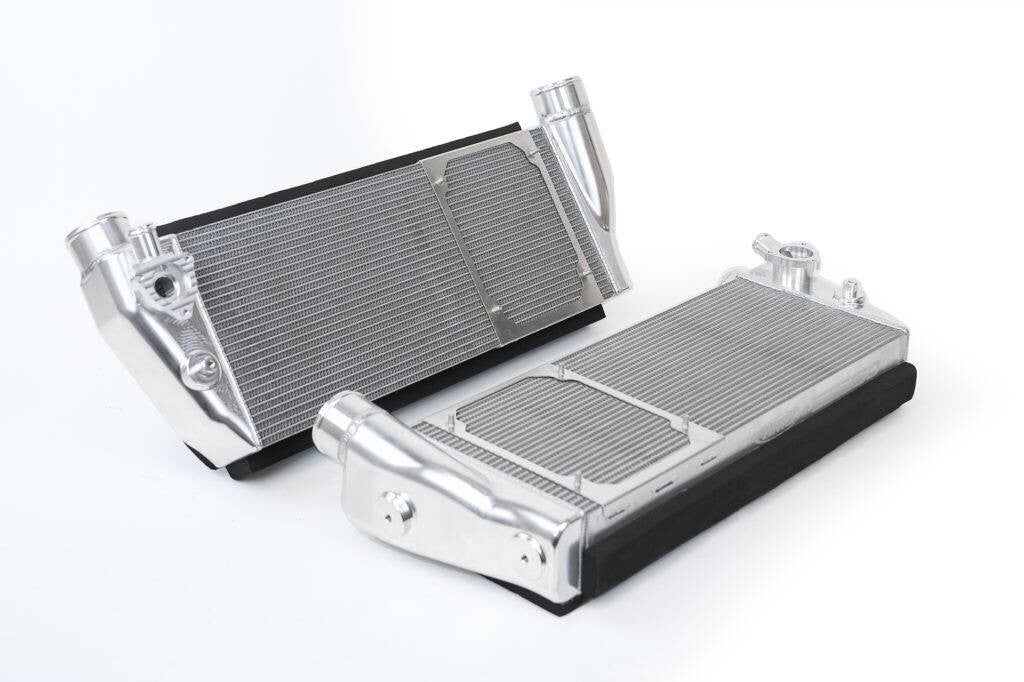

Ferrari 488/Pista/F8 High Performance Intercooler

Design & Engineering

The Ferrari 488/Pista/F8 Intercoolers were carefully designed and engineered to fit exactly like the OEM units they replace. The installation uses all the factory mounting points, shrouds, and fans for a true “drop-in fitment”. No cutting or other modifications are required. CSF pre-installs a high density foam to seal the area around the intercoolers just like the factory units.

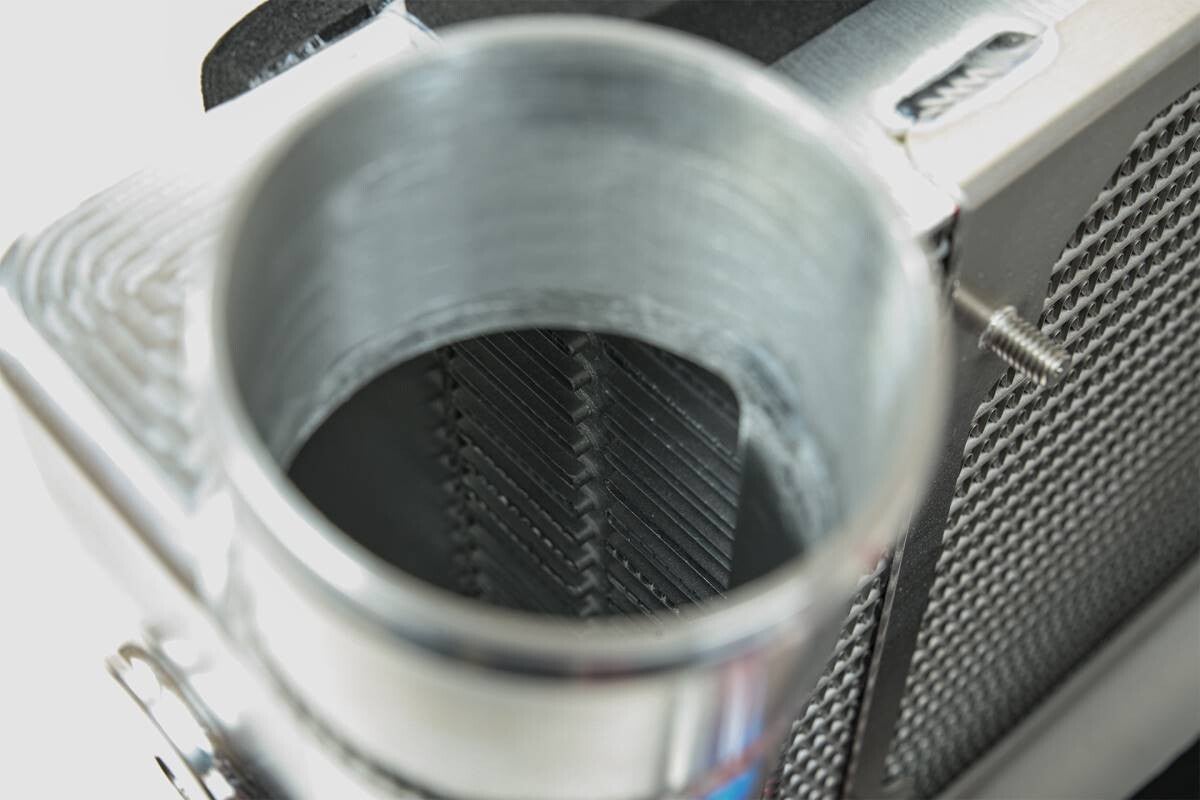

PWR Intercooler Core Technology

The intercooler cores are spec’d out by CSF and custom build by PWR. Featuring two rows of rolled cooling tubes with inner fins, these cores make for the most efficient intercoolers available. Because of this, they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning.

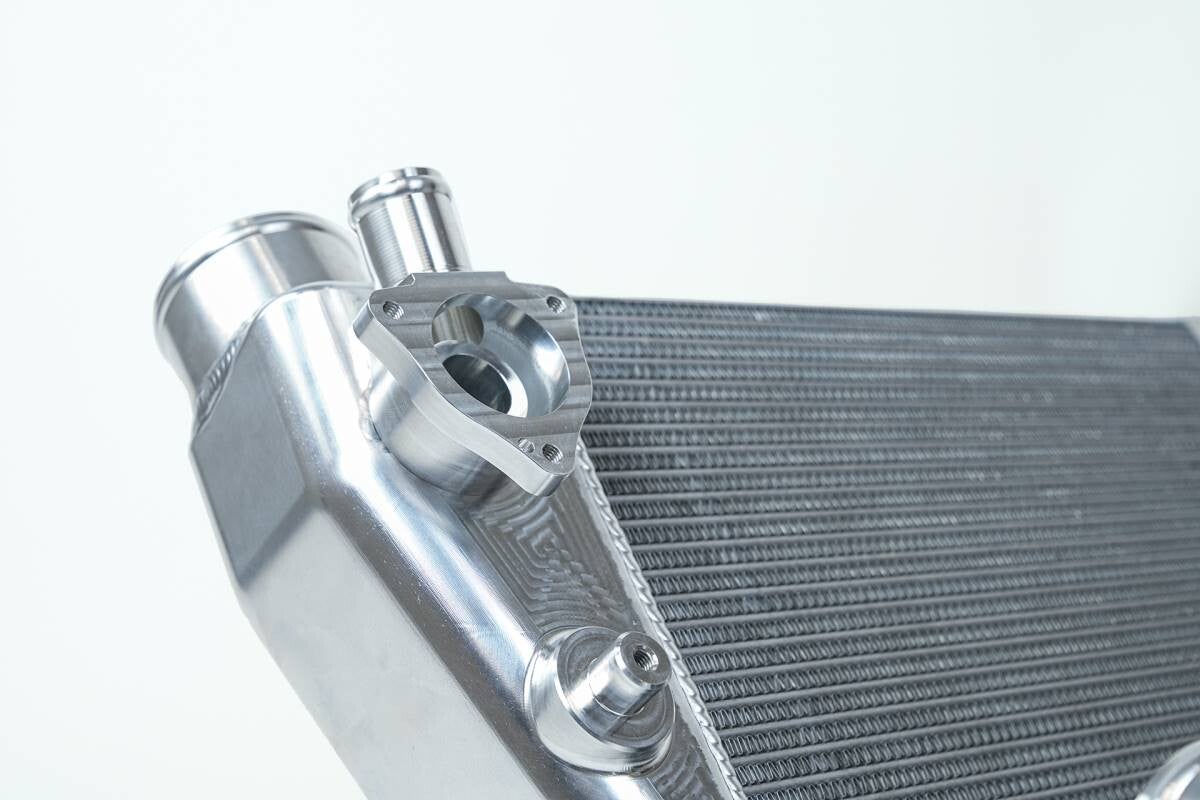

CNC Machined Billet End Tanks

Similar to other CSF by PWR products, the Ferrari 488 Intercoolers features 100% TIG-welded machined billet aluminum end tanks. While the stamped aluminum and brazed with gasket design of the OEM units are stronger than the typical crimped with gasket setups we often see for intercoolers, there is still plenty of room for improvement. The Billet and TIG-welded design far exceeds the pressure limits of both these OEM designs. This feature is not only aesthetically pleasing, but also offers improved longevity and durability. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.

Features

  • Sold as a pair (Left & Right Intercoolers)
  • Eliminates Heat Soak and Lower Intake Air Temperatures (IATs) for Maximum Performance in High-Performance and Race Conditions
  • Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
  • 100% TIG Welded CNC Machined Billet End Tanks for Maximum Strength & Durability
  • Made in the USA at PWR North America
  • OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
  • Raw Billet Aluminum Finish
  • Precision machined integrated BPV/BOV connection
  • High density foam installed for OEM Fit & Finish
  • Integrated OEM Style Fan Shroud
  • True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications

Vehicle Applications

  • 2016-2019 Ferrari 488 GTB
  • 2016-2019 Ferrari 488 Spider
  • 2019-2021 Ferrari 488 Pista
  • 2019-2021 Ferrari 488 Pista Spider
  • 2020+ Ferrari F8 Tributo
  • 2020+ Ferrari F8 Spider

Specifications

Features

Barcode 710353082102
UPC Code 710353082102
Note Drop in Fitment. Sold as a pair (Left & Right Intercoolers)
Shipping Weight (Dimensional) 27.000000
Clearance Sale No
Availability Available
Part Type Intercoolers
Make Ferrari
Color Raw
Brand CSF

  • Sold as a pair (Left & Right Intercoolers)
  • Eliminates Heat Soak and Lower Intake Air Temperatures (IATs) for Maximum Performance in High-Performance and Race Conditions
  • Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
  • 100% TIG Welded CNC Machined Billet End Tanks for Maximum Strength & Durability
  • Made in the USA at PWR North America
  • OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
  • Raw Billet Aluminum Finish
  • Precision machined integrated BPV/BOV connection
  • High density foam installed for OEM Fit & Finish
  • Integrated OEM Style Fan Shroud
  • True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications

Vehicle Applications

  • 2016-2019 Ferrari 488 GTB
  • 2016-2019 Ferrari 488 Spider
  • 2019-2021 Ferrari 488 Pista
  • 2019-2021 Ferrari 488 Pista Spider
  • 2020+ Ferrari F8 Tributo
  • 2020+ Ferrari F8 Spider
