Forged pistons Wiseco + rods Manley for Mazda Miata MX-5 / Protege 1.8l 16V BP 84.50mm CR 8.5:1

Forged pistons Wiseco + rods Manley for Mazda Miata MX-5 / Protege 1.8l 16V BP 84.50mm CR 8.5:1
€1,499.16

Forged pistons Wiseco + rods Manley for Mazda Miata MX-5 / Protege 1.8l 16V BP 84.50mm CR 8.5:1

Brand – WISECO

Part Number - WIS-K553M845

Country of Manufacture – USA

Wiseco sport compact piston and ring kits give you stronger pistons and tighter tolerances than any other part in your engine, with less internal and external machining. Wiseco's advanced forging process and extensive heat-treating and finishing processes ensure the performance and reliability that you demand from your engine. These kits' crown thickness and ring lands are designed for power-adders like turbos and blowers and nitrous oxide. They come complete with high-quality piston rings. Whether you're on or off of the street, you can depend on the maximum strength and minimum variance of Wiseco's aluminum-forged pistons for your sport compact vehicle. Choose the kit recommended for your make and engine application.

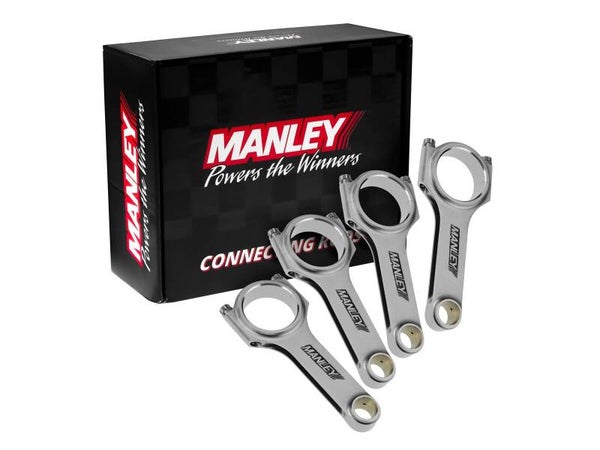

Manley 14011-4 H-beam for Mazda Miata B6/BP 1.6 & 1.8L

Manufactured from 4340 forgings

Heat treated, stress relieved, shot peened and 100% individually magnafluxed

Weight matched sets + 1.5 grams

Cap fasteners are 3/8” ARP 2000 except part number 14017 which is supplied with 7/16” ARP 8740

Flywheel horsepower range for these rods in a 4 cylinder application is 600+ and for a 6 cylinder application the range is 800+

Information

Manley Rod Bolt Recommended Torque w/30wt. Oil: 60 ft./lbs.
Recommended Rod Bolt Stretch w/30wt. Oil: .0058"-.0062"
Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.

Features

  • Manufactured from 4340 forgings
  • Heat treated, stress relieved, shot peened and 100% individually magnafluxed
  • Weight matched sets + 1.5 grams
  • Cap fasteners are 3/8" ARP 2000 for the”H” Beam and 3/8" ARP Custom Age 625+ for the H-Plus

Specifications

MX-5 Miata / Protege LX, EX / 323 / Escort
Model Miata 90-97 NA, Miata 98-05 NB
Engine BP 1.8L
Rod Length 5.233" / 133mm
Rod Length Oversize Standard Length
Pin Size 0.787" / 20mm
Brand Manley Performance
Rod Material Forged Steel
Rod Bolt 3/8" ARP 2000
Big End Width 0.86
Big End Bore 1.89
Beam Type H-Beam
