Audi TTE440L 2.0 TSI UPGRADE TURBOCHARGER
AUDI A4 B8.5 B9, A5 B8.5 B9, A6, Q5, Q7 2.0 TSI/TFSI

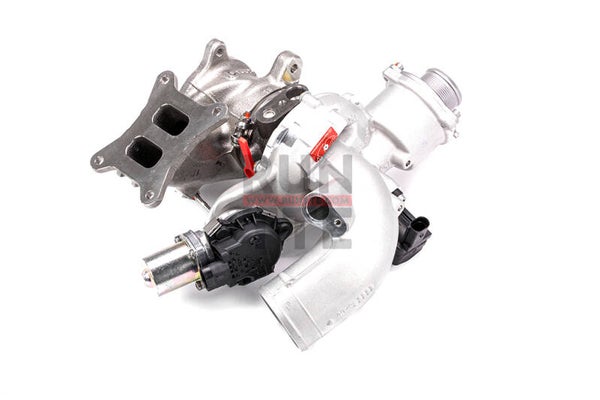

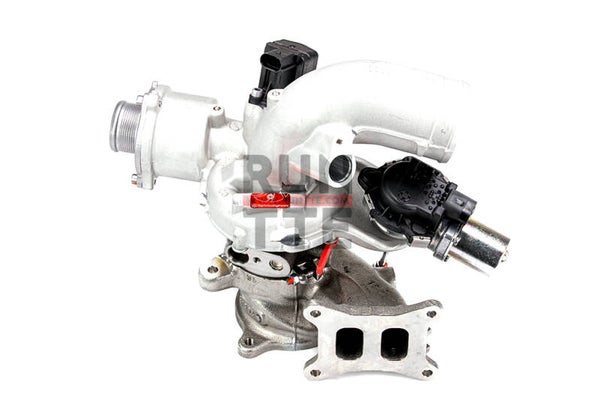

TTE440L is our very latest hybrid performance upgrade turbocharger based on the Original IHI turbocharger for the 3rd generation VAG 2.0TSI found in the AUDI A4 B8.5 & 9, and many other VAG cars. Stage 3 hybrid power, with amazing spool and response. We feel this is the best performing plug & play hybrid available on offer today.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
Product Highlights
Original IHI turbocharger as the base parts
Original Genuine actuator
Original Genuine diverter valve
TTE Billet Milled compressor 6+6 Blade with Extended Tip 50.5mm Inlet
TTE High-Flow Low- Mass 9 Blade Turbine 53mm Outlet
TTE CNC milled OEM silencer delete
TTE Reinforced bearing pack
Plug & Play installation
400HP+ Proven
Proven TheTurboEngineers quality
Single parts finely balanced then components assembled and core high-speed VSR balanced
Supplied with a balance test result document
1 YEAR TTE TROUBLE-FREE WARRANTY
Made in Germany
